Inta Acura Thermostatic bath filter AC50010CP

Inta Acura Thermostatic bath filter AC50010CP

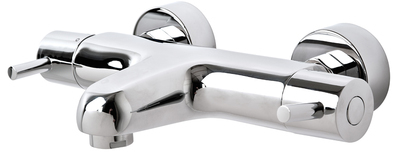

Acura thermostatic bath filter.

Simple to operate and reliable time after time, the acura thermostatic bath filler has been designed to make a statement as well as provide ease of use regardless of the users dexterity.With TMV3 approval Inta’s acura thermostatic bath filler is suitable for hospitals, healthcare, nursing homes, sheltered accommodation, hotels and schools whilst meeting the requirements of the building requirements part G section 3 the subtleties of the modern inclusive design mean the bath filler is also the perfect choice for the domestic home.

• 5 Bar max inlet pressure: Static
• 0.2 Bar min inlet pressure: Dynamic
• 85oC Max inlet temperature
• Inlet connections: G 3/4" F BSP (Valve body)
• Outlet Connections: G 1/2" BSP (Bottom)
• Min temperature differential to achieve failsafe: 15oC
• Thermostatic cartridge: 10017
• Flow cartridge: VT.01

•
  Data Sheet

  (4.00 KB)
•
  Installation Guide

  (4.00 KB)
