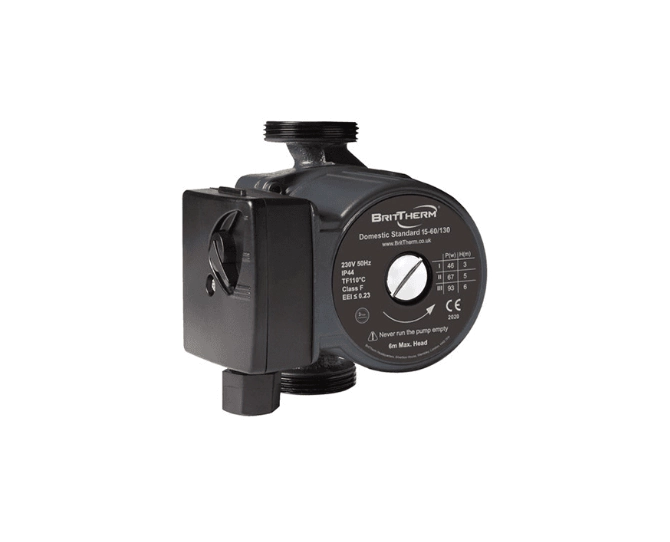

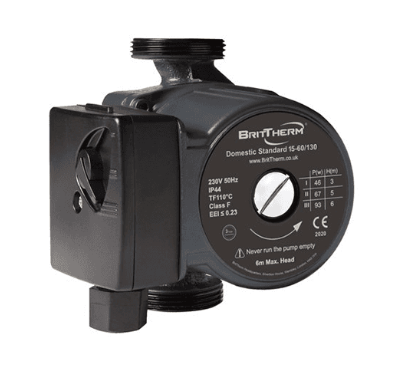

BritTherm DS15 15-60/130 Domestic Heating Pump

BritTherm DS15 15-60/130 Domestic Heating Pump

Technical Specification;

• Connection Size: I 1/i''
• Port to Port Distance: 130mm
• Maximum Head: 6 Meters
• Maximum Flow Rate: 65 Litres Per Minute
• Speed Control: 3 Fixed Speeds
• Maximum System Pressure: 1.0 MPa / I O Bar
• Protection Class: IP44
• Temperature Class:TF I I 0°C
• Insulation Class: F
• Supplied With: Rubber Washers x2
• Material: Cast Iron
• Colour: Black
• Weight: 2.4kg

•
