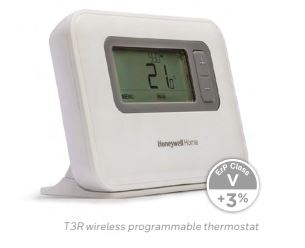

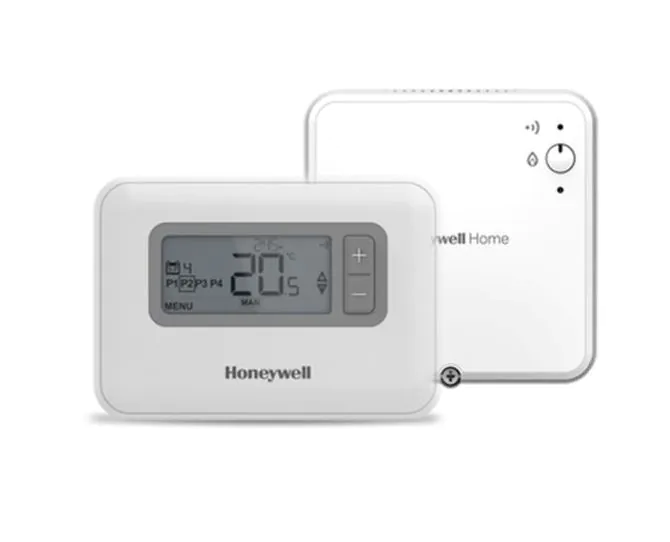

Honeywell T3R Wireless Programmable Thermostat Y3H710RF0053

Honeywell T3R Wireless Programmable Thermostat Y3H710RF0053

Key Features and Benefits

The T3 models have an attractive, ultra-modern styling that make them ideal for any location in any type of home. All the models have:

• A large screen with easily recognised icons and 5 control buttons
• Battery powered with date/time and clock start up screen
• 7 day, & 5/2 day scheduling with a pre-configured schedule included
• Choice of up to 4 time periods a day with copy day feature
• 12 hour or 24 hour clock settings
• Restore schedule and Factory reset facility
• Set point and room temperature displayed
• In use confirmation
• Service Timer
• Screen Back light
• Temperature measurement can be offset to suit the position of the thermostat if required
• Minimum On Time & Cycle Rate settings ensuring compatibility with many boilers
• Minimum/maximum set point facility
• Alert messages to assist fault-finding with fail safe mode

  Additional features of the T3 wireless version

• Wireless technology makes upgrading easier and the installation time shorter with less wiring involved.
• The Thermostat wireless version includes a table stand for ease of positioning
• RF fault indication with signal strength test

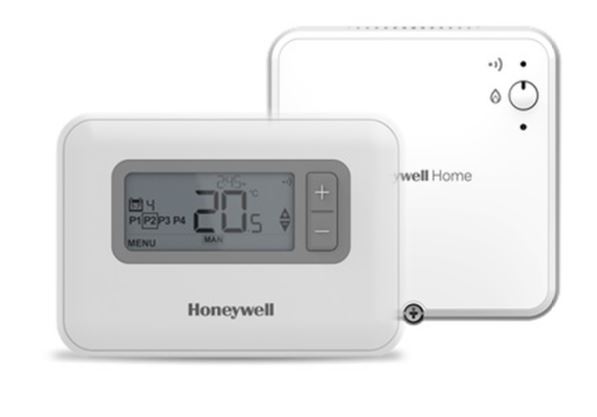

 Receiver– (T3 wireless model )

This new and improved wired or wireless receiver box further simplifies the installation process.

• Earth ‘park’ clearly labelled terminals
• Easy-to-install boiler or zone valve interface
• Offers clear LED indications
• Override the thermostat and fire the boiler for a systems check with a one-button push
• Direct wall mounting or wall-box mounting to match the position of an existing Honeywell device
• Single relay contact for 24–230V on/off appliances

•
