IMI Angle Eclipse 15mm TRV and Lockshield Pack 9690-61.800

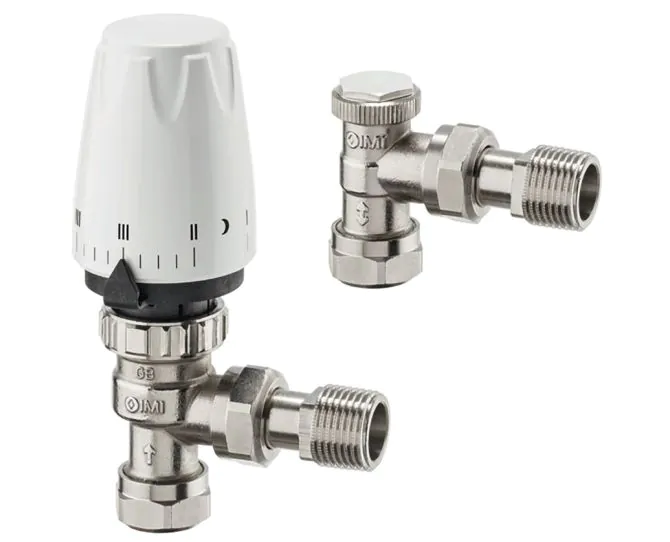

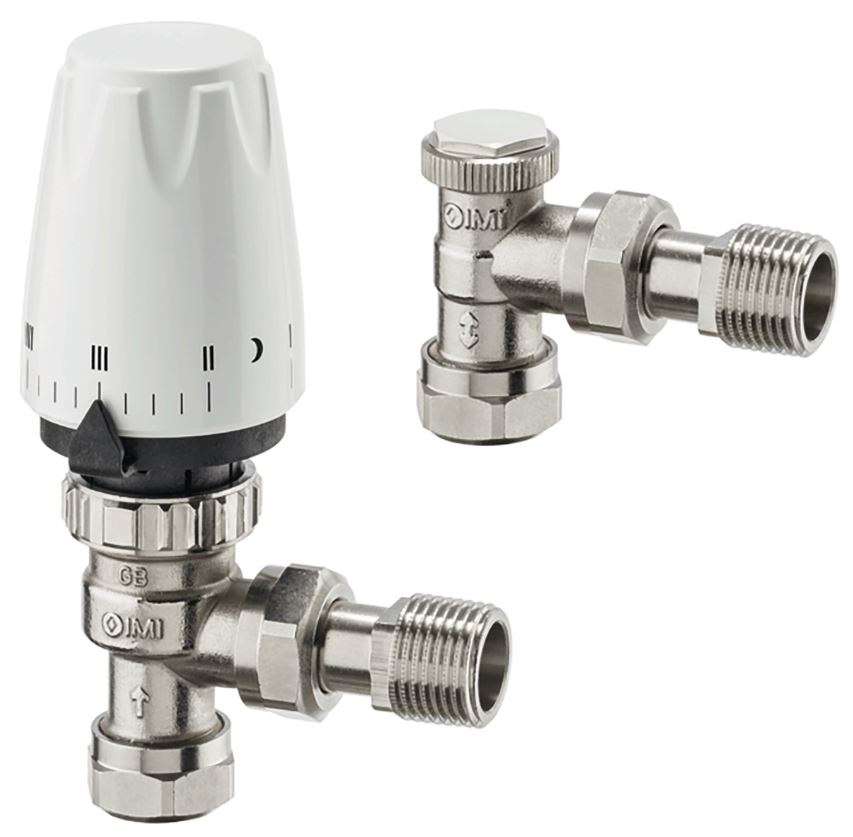

IMI Angle Eclipse 15mm TRV and Lockshield Pack

Manufacturers Part No: 9690-61.800

Thermostatic raditor valve with automatic flow control, head and lockshield

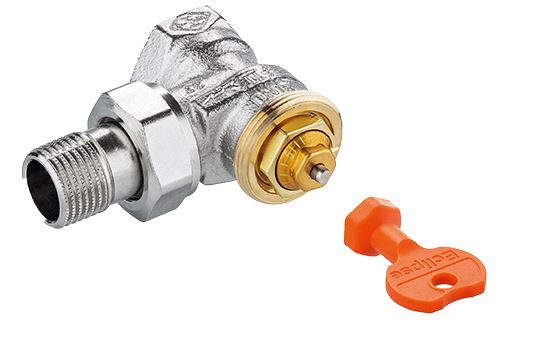

The IMI Heimeier radiator pack, consists of an automatic flow control TRV body , DX head and lockshield. Designed for application in a two-pipe pumped heating system. The required design flow for each radiator is set directly on the Eclipse valve. This automatic flow limitation is done with a twist and the adjusted flow will then not be exceeded. Even if there is an oversupply of pressure, due to load changes in the system, for example other valves closing or during morning start up, Eclipse will guarantee the desired flow. The thermostatic head with our incompressible liquid-filled sensor guarantees a reliable and precise room temperature control.

Key features

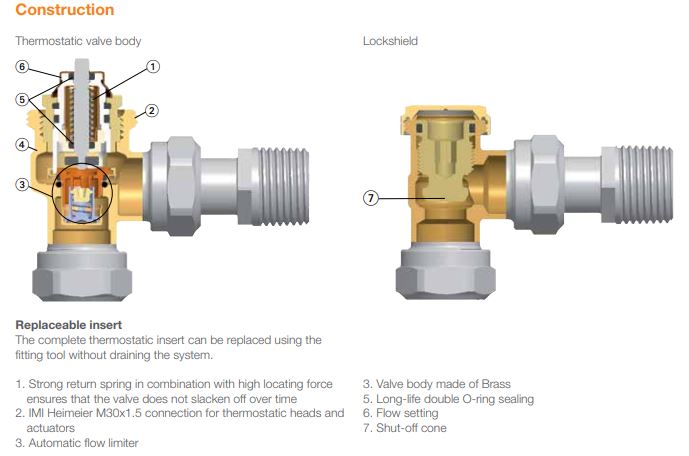

Integrated flow limiter

Eliminates over flows and self balances the system

Angle or axial connection with one kit and straight versions

for various installation options

Flow range from 10 to 150 l/h For high flexibility

Liquid-filled thermostat for powerful and precise control

•
