Inta Foot operated floor-mounted mixing valve LO801CP

Inta Foot operated floor-mounted mixing valve LO801CP

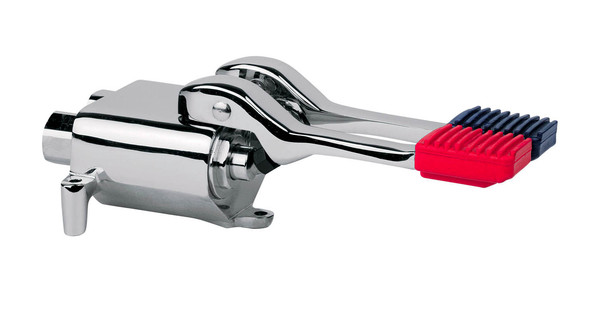

Inta foot operated floor-mounted mixing valve with stop for continuous flow.

The Inta range of foot operated pedal taps allows the user to deliver hot, cold or mixed temperature water in a controlled and hygienic way. The valves are simple to install, easy to use, vandal resistant and durable making them ideal for wide range of applications.

• Min operating pressure: 0.5 bar dynamic
• Max operating pressure: 8 bar static
• Max inlet temperature: 70oC
• Inlet connections: G 1/2" F BSP
• Outlet connections: G 1/2" F BSP

•
