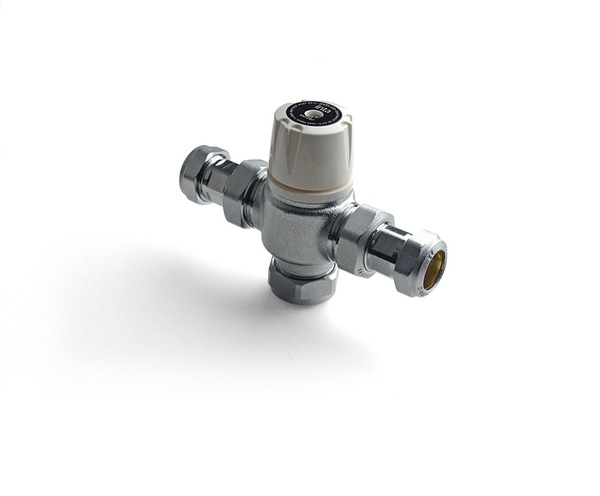

Inta Intamix under bath mixing thermostatic valve 60007CP

Inta - Intamix low pressure under bath mixing thermostatic valve 60007CP

Intamix low pressure under bath thermostatic mixing valve 22mm compression.

The Intamix low pressure under bath mixing valve is designed primarily for bath applications to meet the requirements of Building Regulations Part G. The new regulations state the temperature of water to a bath should be limited to no more 48°C. This allows for heat loss in metal baths. A comfortable bathing temperature is around 37°C.In order to comply with this legislation the Intamix low pressure under bath mixing valve complies with the requirements of TMV2. Delivering safe blended hot water with high flow rates. The Intamix low pressure thermostatic mixing valve is the ideal solution to the requirements of Building Regulations Part G.

• Temperature adjustment range: 250C - 55oC
• Temperature stability: + 2oC
• Max inlet temperature: 85oC
• Max operating pressure: 10 bar static
• Min inlet pressure: 0.2 bar dynamic
• Min temperature to achieve failsafe: 10oC
• Max pressure inlet differential: 5:1
• Pressure drop chart below

•
