Inta Knee operated exposed valve LO810CP

Inta Knee operated exposed valve LO810CP

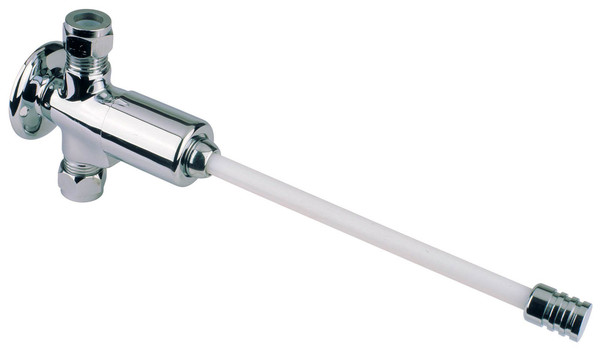

Knee operated exposed valve with 350mm lever.

The Inta range of multi directional lever operated valves allows the user to deliver hot, cold or mixed temperature water in a controlled and hygienic way. The valves are simple to install, easy to use, vandal resistant and durable making them ideal for wide range of applications.

• Min operating pressure: 0.5 bar dynamic
• Max operating pressure: 10 bar static
• Max inlet temperature: 65oC
• Timed flow: 15 + 3 seconds
• Inlet connections: 15mm compression
• Outlet connections: 15mm compression

•
  Data Sheet

  (4.00 KB)
•
  Spares information

  (4.00 KB)
•
  Installation Guide

  (4.00 KB)
