Inta Plus thermostatic bath shower mixer PL30020CP

Inta Plus thermostatic bath shower mixer PL30020CP

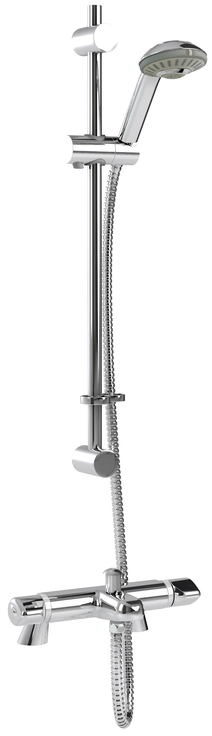

Plus thermostatic bath shower mixer with flexible slide rail kit and deck mounting legs.

The Plus combines a clean, simple style with Inta’s thermostatic protection. Practical and elegant, the Plus range can be used to enhance the appeal of the bathroom setting whilst protecting those who use the bath or shower.

• 5 Bar max inlet pressure (static)
• 0.2 Bar min inlet pressure (dynamic)
• 85oC max inlet temperature
• Inlet connections: G 3/4" F BSP (valve body)
• Outlet connections: G 1/2" BSP (bottom)
• Min temperature differential to achieve failsafe: 15oC

•
  Data Sheet

  (4.00 KB)
