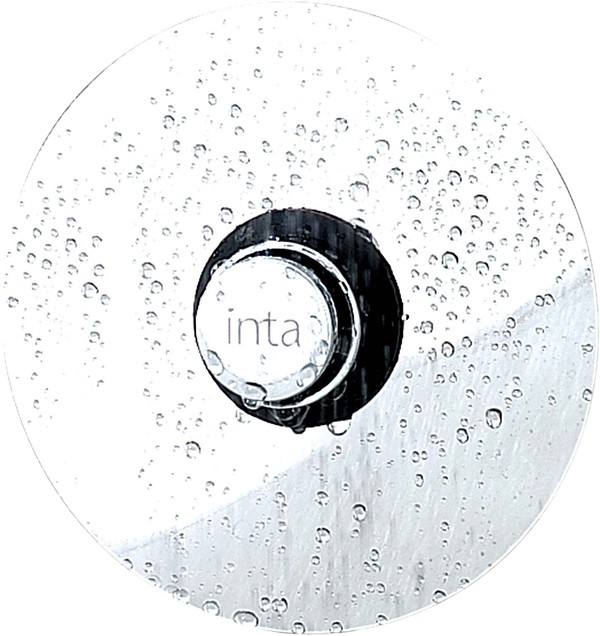

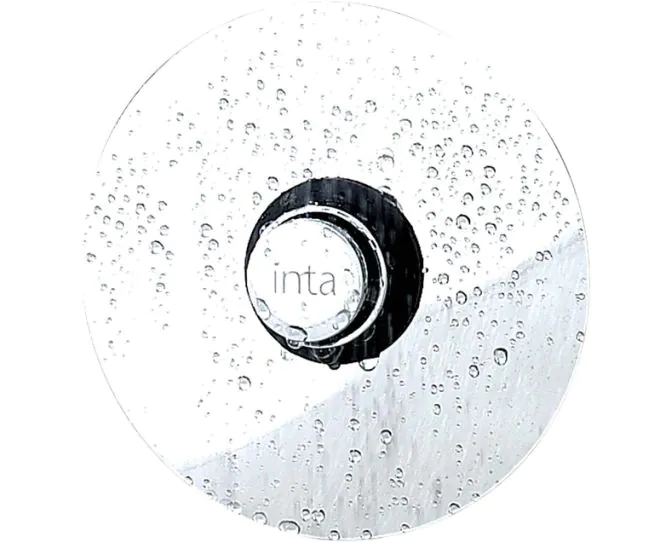

Inta Timed flow shower control concealed TF99730CP

Inta Timed flow shower control concealed TF99730CP

Timed flow shower control concealed (30 seconds).

Water conservation is essential and in some public establishments where multiple water outlets are used, the Inta range of Time Flow Control systems are an eco-friendly, stylish and economical solution to the problem of water wastage. All of the Inta Time Flow Controls are designed to work with the Intamix range of the Thermostatic Mixing Valves.

• Min operating pressure: 0.2 bar dynamic
• Max operating pressure: 10 bar static
• Max inlet temperature: 65oC
• Timed flow at 1 bar: 15/30 + 3 seconds
• Inlet connections: 15mm compression
• Outlet connections: 15mm compression
• Cartridge: TF006 ( 15 seconds)
• Cartridge: TF0815530CP (30 seconds

•
  Installation Guide

  (4.00 KB)
•
  Data Sheet

  (4.00 KB)
•
  Spares Information

  (4.00 KB)
