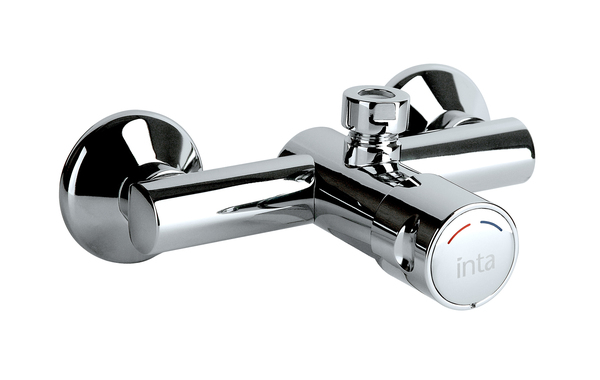

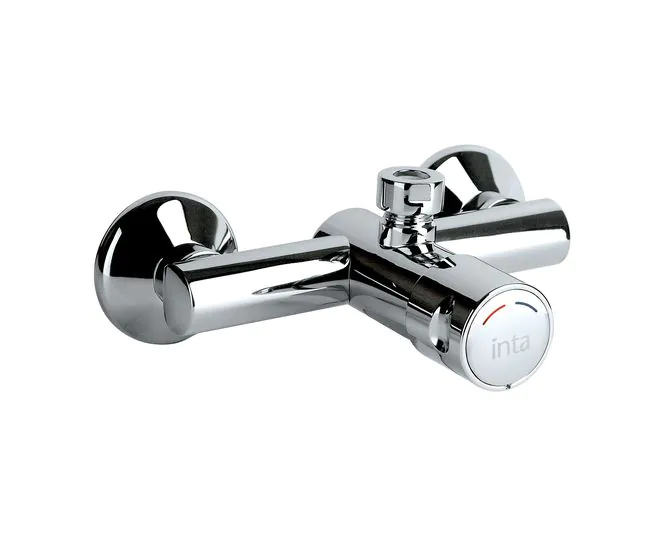

Inta Timed flow shower control with temperature adjustment NC140CP

Inta Timed flow shower control with temperature adjustment NC140CP

Timed flow exposed shower control with temperature adjustment.

The Time Flow Shower Control with Adjustable Temperature control is designed for use with the Inta range of Thermostatic Mixing Valves. The shower is operated by manually pressing the control knob, the non concussive action automatically closes the shower after approximately 15 seconds. Rotating the control knob clockwise or anti-clockwise reduces or increase the mixed water temperature.

• Min operating pressure: 0.5 bar dynamic
• Max operating pressure: 5 bar static
• Max inlet temperature: 65oC
• Timed flow at 1 bar: 15 + 3 seconds
• Inlet connections: G 1/2" F
• Outlet connections: 15mm compression
• Cartridge ID8112

•
  Installation guide

  (4.00 KB)
•
  Data Sheet

  (4.00 KB)
•
  Spares information

  (4.00 KB)
