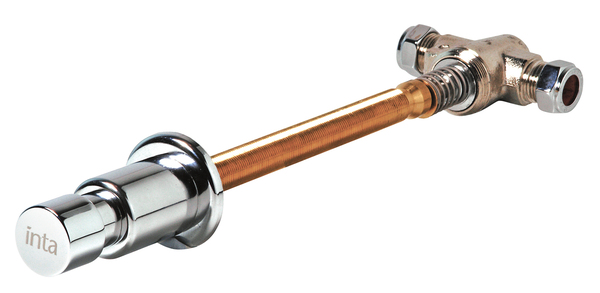

Inta Timed flow vandal-resistant shower control TF222CP200

Inta Timed flow vandal-resistant shower control for prisons, with extended spindle TF222CP200

Timed flow vandal-resistant shower control for prisons with 150mm spindle.

Water conservation is essential and in some public establishments where multiple water outlets are used, the Inta range of Time Flow Control systems are an eco-friendly, stylish and economical solution to the problem of water wastage. All of the Inta Time Flow Controls are designed to work with the Intamix range of the Thermostatic Mixing Valves.

• Min operating pressure: 0.2 bar dynamic
• Max operating pressure: 10 bar static
• Max inlet temperature: 65oC
• Timed flow at 1 bar: 15 + 3 seconds
• Inlet connections: 15mm compression
• Outlet connections: 15mm compression

•
  Data Sheet

  (4.00 KB)
•
  Installation guide

  (4.00 KB)
